Import an Existing Part Grouped Example

Demonstrates the use of the RPATTG statement to import a previously created part into the current part as a group. The part is imported through a matrix to place its origin at 1,1.

$$
$$ Declarations
$$
    ENTITY/G
    NUMBER/M(12)
$$
$$ Matrix Definition
$$
    M = MATRIX/TRANSL,1,1,0
$$
$$ Assemblies
$$
    G=RPATTG/'STAR',M

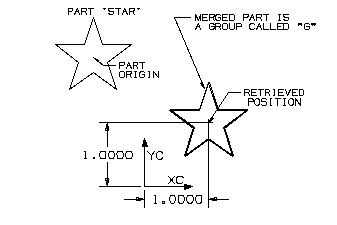

Part Imported Using the RPATTG Statement
