Rotate about XC or YC Axis Example

This example demonstrates the use of the 3D analysis VOLREV statement by specifying a previously defined boundary and rotation about the YC axis.

$$
$$ Declarations
$$

    ENTITY/LN(4),CR1,OBNDRY,IBNDRY
    NUMBER/RETRN(42)
$$
$$ Geometry Definition
$$

    LN(1) =LINE/.25,.25,.25,2.25
    LN(2) =LINE/.25,2.25,2.25,2.25
    LN(3) =LINE/2.25,2.25,2.25,.25
    LN(4) =LINE/2.25,.25,.25,.25
    CR1 =CIRCLE/1.25,1.25,.5
    OBNDRY=BOUND/LN(1..4)
    IBNDRY=BOUND/CR1
$$
$$ 3D Analysis
$$

    ANLSIS/VOLREV,YAXIS,.29,OBNDRY,IBNDRY,INCHES,
    RETRN(1..42)

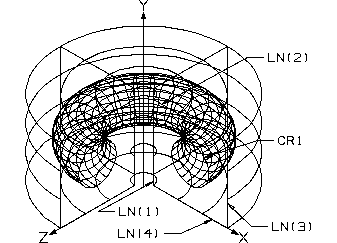

A Three Dimensional Analysis on a Volume of Revolution
