Reverse Face Normals of Sheet Bodies Example

This example demonstrates the use of the 3D Analysis RENORM statement.

$$
$$ Declarations
$$

    ENTITY/LN(4),SHEET(3)
$$
$$ Geometry Definition
$$

    LN(1) =LINE/2.25,0,.25,4,0,.25
    LN(2) =LINE/4,0,.25,4,0,2.25
    LN(3) =LINE/4,0,2.25,2.25,0,2.25
    LN(4) =LINE/2.25,0,0,2.25,0,2.5
    SHEET(1)=REVSRF/LN(1),AXIS,LN(4)
    SHEET(2)=REVSRF/LN(2),AXIS,LN(4)
    SHEET(3)=REVSRF/LN(3),AXIS,LN(4)
$$

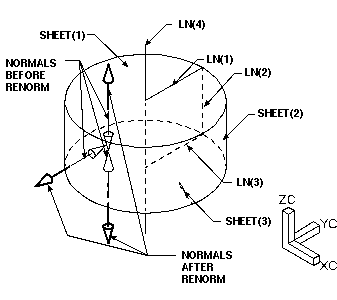

Reverse Normals
$$

    RENORM/SHEET(1..3)

Sheet Body Face Normals Reversed
