Bounded by Sheets Example

This example demonstrates use of the 3D analysis VOLBND statement.

$$
$$ Declarations
$$
    ENTITY/LN(4),SHEET(3)
    NUMBER/RETRN(42)
    DATA/ACC,.9
$$
$$ Geometry Definition
$$
    LN(1) =LINE/2.25,0,.25,4,0,.25
    LN(2) =LINE/4,0,.25,4,0,2.25
    LN(3) =LINE/4,0,2.25,2.25,0,2.25
    LN(4) =LINE/2.25,0,0,2.25,0,2.5)
    SHEET(1)=REVSRF/LN(1),AXIS,LN(4)
    SHEET(2)=REVSRF/LN(2),AXIS,LN(4)
    SHEET(3)=REVSRF/LN(3),AXIS,LN(4)
    RENORM/SHEET(1..3)
$$
$$ 3D Analysis
$$
    ANLSIS/VOLBND,.29,ACCRCY,ACC,SHEET(1..3),LBIN,$
    RETRN(1..42)

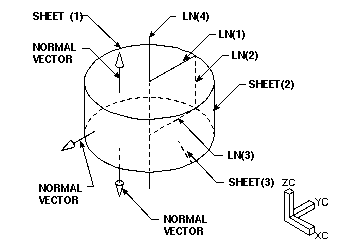

A Three Dimensional Analysis on a Bounded Volume
