Create Surface of Revolution Example

Creating a surface of revolution type sheet body by specifying a generating curve and a revolving line. The point specified changes the viewing direction from the previous example.

$$
$$ Declarations
$$
    ENTITY/LN1,PT1,P(9),SPLN1,SRFREV
$$
$$ Geometry Definition
$$
    LN1=LINE/0,-.25,0,2.25
    PT1=POINT/0,0
    P(1)=POINT/1,0
    P(2)=POINT/.75,.125
    P(3)=POINT/.5,.25
    P(4)=POINT/.25,.5
    P(5)=POINT/.25,.75
    P(6)=POINT/.25,1
    P(7)=POINT/1,1.625
    P(8)=POINT/1.375,1.75
    P(9)=POINT/1.5,2
    SPLN1=SPLINE/P
$$
$$ Sheet Body Definition
$$
    SRFREV=REVSRF/SPLN1,AXIS,LN1,PT1,0,180

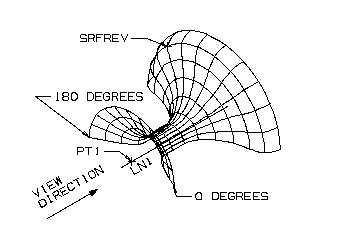

Surface of Revolution Type Sheet Body Using a Point to Control Rotation
