Create Fillet Surface Example 3

Creating an S-shaped fillet between two between sheet bodies.

$$
$$ Declarations
$$
    ENTITY/PT1,LN(4),P(4),SURF(2),FLT1
$$
$$ Geometry Definition
$$
    PT1=POINT/0,.5,-.5
    P(1)=POINT/-1,.5
    P(2)=POINT/-1,1.5
    P(3)=POINT/-1,0,-.5
    P(4)=POINT/-1,0,-1.5
    LN(1)=LINE/-1,.5,1,.5
    LN(2)=LINE/PARLEL,LN(1),YLARGE,1
    LN(3)=LINE/-1,0,-.5,1,0,-.5
    LN(4)=LINE/PARLEL,LN(3),ZSMALL,1 SURF(1)=RLDSRF/LN(1),P(1),LN(2),P(2) SURF(2)=RLDSRF/LN(3),P(3),LN(4),P(4)
$$
$$ Fillet Definition
$$
    FLT1=FILSRF/SURF(1),SURF(2),PT1,RADIUS,.5,.75,SSHAPE

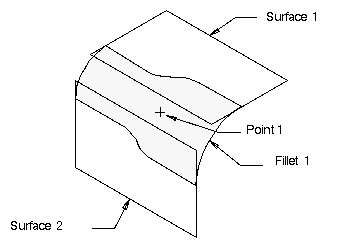

An S-shaped Fillet
