Create Fillet Surface Example 1

Creating a constant radius fillet between two sheet bodies.

$$
$$ Declarations
$$
    ENTITY/PT1,LN(4),P(4),SURF(2),FLT1
$$
$$ Geometry Definition
$$
    PT1=POINT/0,.5,-.5
    P(1)=POINT/-1,.25
    P(2)=POINT/-1,1.5
    P(3)=POINT/-1,0,-.25
    P(4)=POINT/-1,0,-1.5
    LN(1)=LINE/-1,.25,1,.25
    LN(2)=LINE/PARLEL,LN(1),YLARGE,1.25
    LN(3)=LINE/-1,0,-.25,1,0,-.25
    LN(4)=LINE/PARLEL,LN(3),ZSMALL,1.25 SURF(1)=RLDSRF/LN(1),P(1),LN(2),P(2)
     SURF(2)=RLDSRF/LN(3),P(3),LN(4),P(4)
$$
$$ Creation of Fillet
$$
    FLT1=FILSRF/SURF(1),SURF(2),PT1,RADIUS,.5

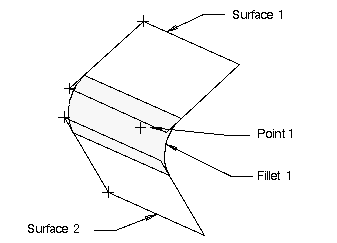

A Constant Radius Fillet
