Principal Plane Example

Creating three planes that are a specified distance from each of the three principal planes of the WCS.

$$
$$  Declarations
$$
    ENTITY/PL1,PL2,PL2
$$
$$  Plane Definition
$$
    PL1=PLANE/XYPLAN,1.5
    PL2=PLANE/YZPLAN,1.5
    PL3=PLANE/XZPLAN,1.5

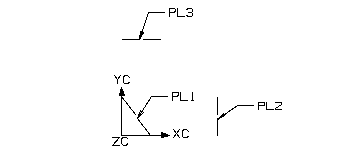

A Plane Parallel to a Principal Plane at a Distance
