Plane: Parallel to a Plane, Thru a Point Example

Creating a plane object which is parallel to a previously defined plane and passes through a specified point.

$$
$$  Declarations
$$
    ENTITY/PT1,PT2,PT3,PT4,PL1,PL2
$$
$$ Geometry Definition
$$
    PT1=POINT/0,0
    PT2=POINT/-1,1
    PT3=POINT/1,1
    PT4=POINT/0,0,1
    PL1=PLANE/PT1,PT2,PT3
$$
$$ Plane Definition
$$
    PL2=PLANE/PARLEL,PL1,THRU,PT4

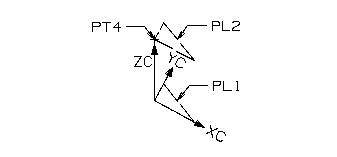

A Plane Parallel to a Plane through a Point
