Curve Mesh Example 2

Creating the same free form body as in the previous example, however, the U and V grid display has been changed.


$$
$$  Declarations
$$
    ENTITY/P(12),SPLN(5),SSRF1
$$
$$ Geometry Definition
$$
    P(1) = POINT/-2,-1
    P(2) = POINT/-1.875,-.1,.25
    P(3) = POINT/-1.9,.3,-.1 5
    P(4) = POINT/-2, 1
    P(5) = POINT/-.2,-1.1,-. 1
    P(6) = POINT/0,-.1,.2 5
    P(7) = POINT/.1,.5,.1
    P(8) = POINT/0,1.1
    P(9) = POINT/2,-.9 5
    P(10) = POINT/1.9,0,-. 3
    P(11) = POINT/1.85,.2,. 1
    P(12) = POINT/1.9,1.2
    SPLN(1) = SPLINE/P(1..4)
    SPLN(2) = SPLINE/P(5..8)
    SPLN(3) = SPLINE/P(9..12 )
    SPLN(4) = SPLINE/P(1),P(5),P(9 )
    SPLN(5) = SPLINE/P(4),P(8),P(12)
    &SGRIDU = 3
    &SGRIDV = 3
$$
$$ Body Definition
$$
    SSRF1 = SSURF/PRIMA,SPLN(1..3),CROSS,SPLN(4..5)

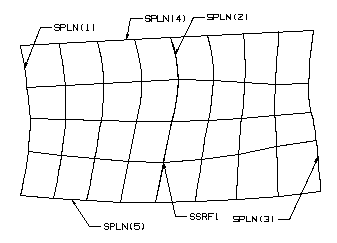

The Effects of &SGRIDV and &SGRIDU
