Curve Mesh Example 1

Creating a free form body using the Curve Mesh method.

$$
$$ Declarations
$$
    ENTITY/P(12),SPLN(5),SSRF1
$$
$$ Geometry Definition
$$
    P(1) = POINT/-2,-1
    P(2) = POINT/-1.875,-.1,.25
    P(3) = POINT/-1.9,.3,-.15
    P(4) = POINT/-2,1
    P(5) = POINT/-.2,-1.1,-.1
    P(6) = POINT/0,-.1,.25
    P(7) = POINT/.1,.5,.1
    P(8) = POINT/0,1.1
    P(9) = POINT/2,-.95
    P(10) = POINT/1.9,0,-.3
    P(11) = POINT/1.85,.2,.1
    P(12) = POINT/1.9,1.2
    SPLN(1) = SPLINE/P(1..4)
    SPLN(2) = SPLINE/P(5..8 )
    SPLN(3) = SPLINE/P(9..12 )
    SPLN(4) = SPLINE/P(1),P(5),P(9 )
    SPLN(5) = SPLINE/P(4),P(8),P(12)
    &SGRIDU = 10
    &SGRIDV = 10
$$
$$ Body Definition
$$

    SSRF1 =SSURF/PRIMA,SPLN(1..3),CROSS,SPLN(4..5)

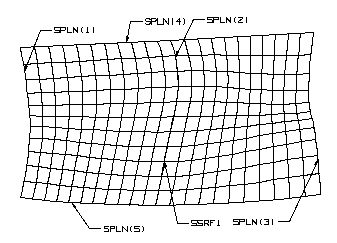

Free Form Body Generated by Primary and Cross Curve Method
