Create Bounded Plane Example

Shows how to define a bounded plane type sheet body.

$$
$$ Declarations
$$
    ENTITY/PENT(4),HENT(2),BPL1
    NUMBER/NLOOP(2)
$$
$$ Geometry Definition
$$
    PENT(1) = LINE/-1.75,1.5,2.25,1.5
    PENT(2) = LINE/2.25,1.5,1.75,-1.5
    PENT(3) = LINE/1.75,-1.5,-2.25,-1.5
    PENT(4) = LINE/-2.25,-1.5,-1.75,1.5
    HENT(1) = CIRCLE/-1,0,.5
    HENT(2) = CIRCLE/1,0,.5
    NLOOP(1) = 1
    NLOOP(2) = 1
$$
$$ Definition of Sheet Body
$$
    BPL1 = BPLANE/PENT(1..4),HOLE,NLOOP(1..2),HENT(1..2)

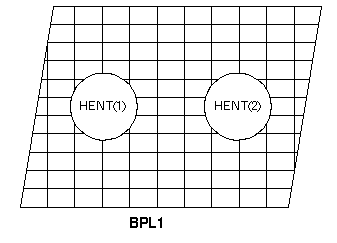

Bounded Plane Type Sheet Body with Holes
