Center Point, Line Example

Creating a cylinder by specifying a center point and a "revolved" line.

$$
$$  Declarations
$$
    ENTITY/PT1,LN1,CYL1
$$
$$ Geometry Definition
$$
    PT1 =POINT/0,0
    LN1 =LINE/1,0,1,0,1,-1
$$
$$ Cylinder Definition
$$
    CYL1=CYLNDR/CENTER,PT1,LN1

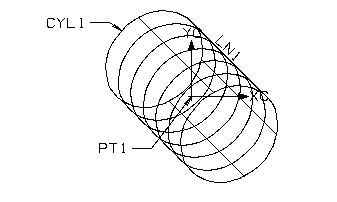

Cylinder Generated by Revolving a Line about an Imaginary Axis
