Vertex Point, Vertex Half-angle, Bounding Points Example

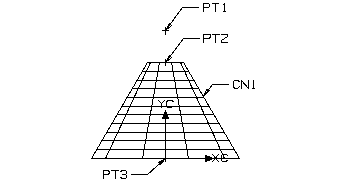

Creating a cone by defining a vertex point, an angle which is equal to half of the desired vertex angle, and two bounding points.

$$
$$  Declarations
$$
    ENTITY/PT1,PT2,PT3,CN1
$$
$$ Geometry Definition
$$
    PT1=POINT/0,2
    PT2=POINT/0,1.5
    PT3=POINT/0,0
$$
$$ Cone Definition
$$
    CN1=CONE/PT1,VECT,0,1,0,ANGLE,30,PT2,PT3
