Intersection Point Example

Creating several intersection points between two sets of circles.

$$
$$ Declarations
$$
    ENTITY/CR1,CR2,CR3,CR4,PT0,PT1,PT2,PT3,PT4
$$
$$ Geometry Definition
$$
    CR1=CIRCLE/-1.25,0,.5
    CR2=CIRCLE/-.5,0,.5
    CR3=CIRCLE/1,.375,.5
    CR4=CIRCLE/1,-.375,.5
    PT0=POINT/1.5,0
$$
$$ Point Definition
$$
    PT1=POINT/YLARGE,INTOF,CR1,CR2
    PT2=POINT/YSMALL,INTOF,CR1,CR2
    PT3=POINT/XSMALL,INTOF,CR3,CR4
    PT4=POINT/PT0,INTOF,CR3,CR4

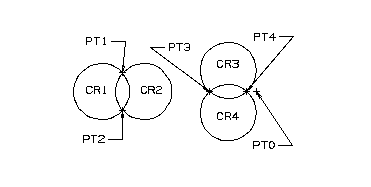

Intersection Points of Two Curves
