End Point Example

Creating several points at the ends of a line and a circle.

$$
$$ Declarations
$$
    ENTITY/LN1,CR1,PT1,PT2,PT3,PT4
$$
$$ Geometry Definition
$$
    LN1=LINE/-2,-1,0,1
    CR1=CIRCLE/1,0,1,START,45,END,210
$$
$$ Point Definition
$$
    PT1=POINT/ENDOF,XSMALL,LN1
    PT2=POINT/ENDOF,YLARGE,LN1
    PT3=POINT/ENDOF,XLARGE,CR1
    PT4=POINT/ENDOF,YSMALL,CR1

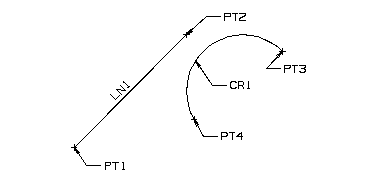

A Point at the End of an Object
