Parallel at a Distance Example Example

Creating a line parallel to another existing line at a specified distance.

$$
$$ Declarations
$$
    ENTITY/LN1,LN2,LN3
$$
$$ Geometry Definition
$$
    LN1=LINE/-1,0,1,0
$$
$$ Line Definition
$$
    LN2=LINE/PARLEL,L1,YLARGE,1
    LN3=LINE/PARLEL,L1,YSMALL,1

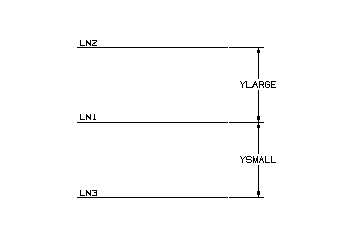

Lines Parallel to an Existing Line at a Given Distance
