Through a Point, at an Angle Example

Creating two lines that pass thru PT1 at a specified angle.

$$
$$ Declaration
$$
    ENTITY/PT1,LN1,LN2
$$
$$ Point Definition
$$
    PT1=POINT/0,0
$$
$$ Line Definition
$$
    LN1=LINE/PT1,ATANGL,45
    LN2=LINE/PT1,ATANGL,-30

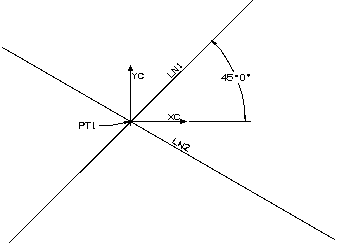

Line through a Point at an Absolute Angle
