Center Point, Point on the Arc Example

Demonstrates the use of the Center Point, Point on the Arc statement to create full and partial circles.

$$
$$ Declaration
$$
    ENTITY/P(4),CR(2)
$$
$$ Geometry Definition
$$
    P(1)=POINT/1,0
    P(2)=POINT/1,.5
    P(3)=POINT/3,0
    P(4)=POINT/3,.5
$$
$$ Circle Definition
$$
    CR(1)=CIRCLE/CENTER,P(1),P(2),START,45,END,360
    CR(2)=CIRCLE/CENTER,P(3),P(4)

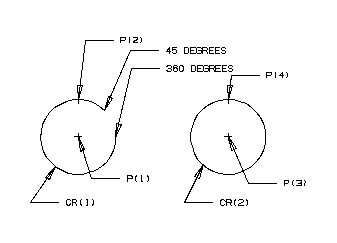

Arcs with Specified Center Points and Points on the Arcs
