Runout Filled Arrowhead Display

Synopsis

&RNFILL

Description

Controls the form and positional tolerance runout filled arrowhead display for both circular and total runout.

Characteristics

Read/Write - Number - [1,2]

Constant Values

1 = &YES
2 = &NO

Parameters

Parameter	Description
&YES	GPA constant which indicates that the filled arrowhead of runout symbol will be displayed.
&NO	GPA constant which indicates that no filled arrowheads will be displayed.

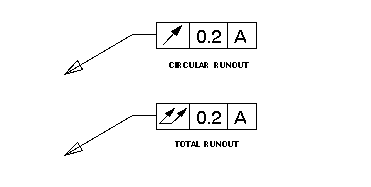

Figure 1-6 Circular and Total Runout with Filled Arrowheads Displayed
