Composite Frame Display

Synopsis

&CMPFRM

Description

Controls the Form and Positional Tolerance symbols composite frame display.

Characteristics

Read/Write - Number - [1,2]

Constant Values

1 = &YES
2 = &NO

Parameters

Parameter	Description
&YES	GPA constant which indicates that the composite frame will be displayed.
&NO	GPA constant which indicates that no composite frame will be displayed.

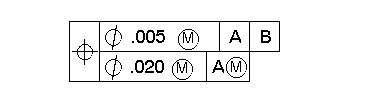

Figure 1-5 Composite Frame Displayed
