垂直文本对齐

Synopsis

&VTXJST

Description

Allows you to read or set the vertical alignment of multiple lines of text with the dimension lines or leader.

Characteristics

Read/Write - Number - [1..3]

Constant Values

1 = &TOP
2 = &MIDDLE
3 = &BOTTOM

Parameters

Parameter

Description

&TOP

GPA which indicates that the first line of text will be aligned with the dimension line or leader.

&MIDDLE

GPA which indicates that the middle line of text will be aligned with the dimension line or leader.

&BOTTOM

GPA which indicates that the last line of text will be aligned with the dimension line or leader.

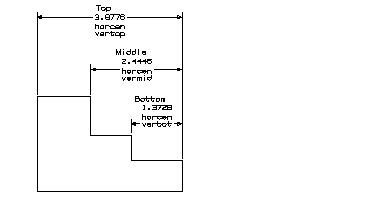

Top, Middle and Bottom Justification

Parameter	Description
&TOP	GPA which indicates that the first line of text will be aligned with the dimension line or leader.
&MIDDLE	GPA which indicates that the middle line of text will be aligned with the dimension line or leader.
&BOTTOM	GPA which indicates that the last line of text will be aligned with the dimension line or leader.
