弧长符号

Synopsis

&ARLNSM

Description

Controls the arc length symbol display for arc length dimensions.

Characteristics

Read/Write -Number - [1,2]

Constant Values

1 = &YES
2 = &NO

Parameters

Parameter	Description
&YES	GPA constant which indicates that the arc length symbol will be displayed with the arc length dimension.
&NO	GPA constant which indicates that no arc length symbol will be displayed.

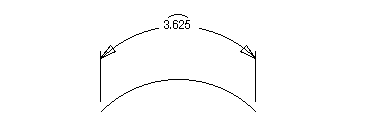

Arc Length Symbol Displayed with Dimension
