Block Example

Creating two solid blocks, both possessing the same origin point. One has positive edge length values, the other negative edge lengths.

$$
$$ Declarations
$$
    ENTITY/BLOCK1,BLOCK2
$$
$$ Geometry Definition
$$
    BLOCK1 = SOLBLK/ORIGIN,1,3,2,SIZE,1,2,.5
    BLOCK2 = SOLBLK/ORIGIN,1,3,2,SIZE,-1,-2,-.5

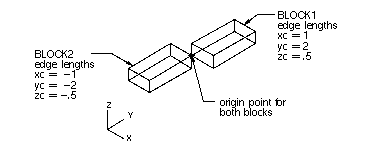

Solid Blocks Created Using Positive vs. Negative Edge Lengths
