Object Name Example

This example demonstrates the use of the &NAME EDA to assign a name to several objects.

$$
$$ Declarations
$$
    ENTITY/LN1,LN2,LN3,LN4,C(4)
    LN1=LINE/0,0,4,0
    LN2=LINE/0,3,4,3
    LN3=LINE/0,0,0,3
    LN4=LINE/4,0,4,3
    C(1)=CIRCLE/.5,.5,.25
    C(2)=CIRCLE/3.5,.5,.25
    C(3)=CIRCLE/.5,2.5,.25
    C(4)=CIRCLE/3.25,2.5,.25
    &ATTDIS=&ON
    &NAME(LN1)='PART_EDGE'
    &NAME(LN2)='PART_EDGE'
    &NAME(LN3)='PART_EDGE'
    &NAME(LN4)='PART_EDGE'
    &NAME(C(1))='MOUNTING_HOLES'
    &NAME(C(2))='MOUNTING_HOLES'
    &NAME(C(3))='MOUNTING_HOLES'
    &NAME(C(4))='OFFSET_HOLE'

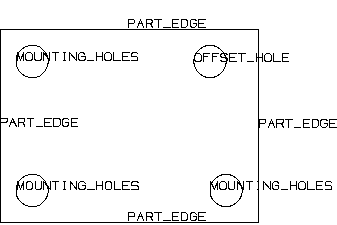

Assigning Names to Objects with Attribute Display on
