Label Example

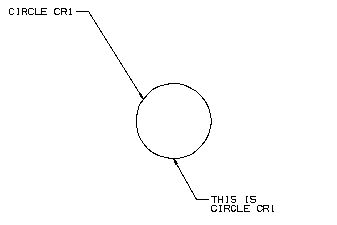

Creating two labels by specifying a text string and a previously created circle where the arrow terminates.

$$
$$ Declarations
$$
    ENTITY/CR1,LBL1,LBL2
$$
$$ Geometry Definition
$$
    CR1 =CIRCLE/0,0,.5
    &ENSITE=&TOPL
$$
$$ Label Definition
$$
    LBL1 =LABEL/RIGHT,-2.2,1.5,CR1,'CIRCLE CR1'
    LBL2 =LABEL/LEFT,.5,-1,CR1,0,-1,'THIS IS',$
    'CIRCLE CR1'
    HALT
