ID Symbol Example 2

Creating a square and a divided square ID symbol with leaders.

$$
$$ Declarations
$$
    ENTITY/CR1,SYM1,SYM2
$$
$$ Geometry Definition
$$
    &IDSIZE=1
    &CSIZE=.125
    CR1=CIRCLE/0,0,.5
$$
$$ Symbol Definition
$$
    SYM1=IDSYM/SQR,-1.687,1.08,ARROW,RIGHT,CR1,'CR1'
    &CSIZE=.09
    SYM2=IDSYM/DSQR,1.687,-1.08,DOT,LEFT,CR1,'CIRCLE', $
    'CR1'
    HALT

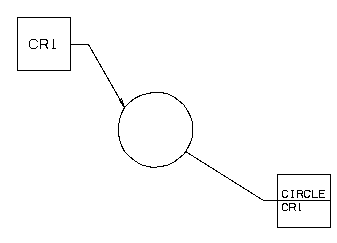

Symbols Using an Arrow and a Dot for Leader Ends
