ID Symbol Example 1

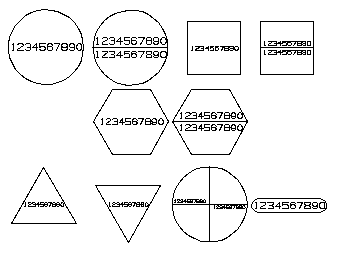

Demonstrates the creation of each ID Symbol available in the statement.

    &IDSIZE=1
    &CSIZE=.09
$$
$$ Circle
$$
    IDSYM/CIR,-1.687,1.08,NONE,'1234567890'
$$
$$ Divided Circle
$$
    IDSYM/DCIRC,-.562,1.08,NONE,'1234567890','1234567890'
    &CSIZE=.06
$$
$$ Square
$$
    IDSYM/SQR,.562,1.08,NONE,'1234567890'
$$
$$ Divided Square
$$
    IDSYM/DSQR,1.687,1.08,NONE,'1234567890','1234567890'
    &CSIZE=.08
$$
$$ Hexagon
$$
    IDSYM/HEX,-.562,0,NONE,'1234567890'
$$
$$ Divided Hexagon
$$
    IDSYM/DHEX,.562,0,NONE,'1234567890','1234567890'
    &CSIZE=.05
$$
$$ Up Triangle
$$
    IDSYM/TRIUP,-1.687,-1.08,NONE,'1234567890'
$$
$$ Down Triangle
$$
    IDSYM/TRIDWN,-.562,-1.08,NONE,'1234567890'
    &CSIZE=.04
$$
$$ Datum
$$
    IDSYM/DATUM,.562,-1.08,NONE,'1234567890','1234567890'
    &CSIZE=.09
$$
$$ Rectangle with Rounded Corners
$$
    IDSYM/OBLNG,1.687,-1.08,NONE,'1234567890'
