Demonstrates the creation of each Form-Positional Tolerance symbol.
&CSIZE=.093
&ENSITE=&TOPL
FMPOS/-2.2,1.5,NONE,'SYMBOL,1 ',NEXTL,SYMBOL,1
FMPOS/-1.075,1.5,NONE,'SYMBOL,2 ',NEXTL,SYMBOL,2
FMPOS/.05,1.5,NONE,'SYMBOL,3 ',NEXTL,SYMBOL,3
FMPOS/1.175,1.5,NONE,'SYMBOL,4 ',NEXTL,SYMBOL,4
FMPOS/-2.2,.6875,NONE,'SYMBOL,5 ',NEXTL,SYMBOL,5
FMPOS/-1.075,.6875,NONE,'SYMBOL,6 ',NEXTL,SYMBOL,6
FMPOS/.05,.6875,NONE,'SYMBOL,7 ',NEXTL,SYMBOL,7
FMPOS/1.175,.6875,NONE,'SYMBOL,8 ',NEXTL,SYMBOL,8
FMPOS/-2.2,-.125 ,NONE,'SYMBOL,9 ',NEXTL,SYMBOL,9
FMPOS/-1.075,-.125 ,NONE,'SYMBOL,10',NEXTL,SYMBOL,10
FMPOS/.05,-.125 ,NONE,'SYMBOL,11',NEXTL,SYMBOL,11
FMPOS/1.175,-.125 ,NONE,'SYMBOL,12',NEXTL,SYMBOL,12
FMPOS/-2.2,-.9375,NONE,'SYMBOL,13',NEXTL,SYMBOL,13
FMPOS/-1.075,-.9375,NONE,'SYMBOL,14',NEXTL,SYMBOL,14
FMPOS/.05,-.9375,NONE,'SYMBOL,15',NEXTL,SYMBOL,15
HALT

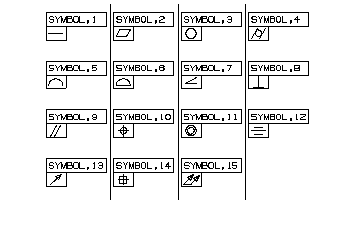

The 15 Standard Form and Positional Tolerance Symbols
Demonstrates the creation of several tolerance symbols using the five valid control characters.
FMPOS/-2.2, 1.5,NONE,'M',NEXTL,'< M >'
FMPOS/ .05, 1.5,NONE,'S',NEXTL,'< S >'
FMPOS/-2.2, -.125,NONE,'P',NEXTL,'< P >'
FMPOS/ .05, -.125,NONE,'O',NEXTL,'< O >'
FMPOS/-2.2, -1.75,NONE,'L',NEXTL,'< E >'
In
the program above, the two symbols < and > represent the less
than and greater than symbols.

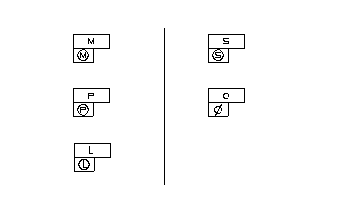

Five Special Control Characters for Form-Positional Tolerance Symbols
