Full Circular Centerline Example

Creating a full circular centerline using the CENTER minor word.

   $$
   $$ Declarations
   $$
   ENTITY/LN1,P1,P2,CR1,CTRLN1

   $$
   $$ Geometry Definitions
   $$
   LN1 = LINE/-2,-1,-2,1
   P2 = POINT/-1,1
   CR1 = CIRCLE/CENTER,P2,RADIUS,.2
   $$
   $$ Center Point Definition
   $$
   P1 = POINT/ENDOF,YLARGE,LN1

   $$
   $$ Centerline Definition
   $$
   CTRLN1 = CLINE/FCIRC,CENTER,P1,CR1
   $$
   $$ Program continues
   $$
   .
   .
   .

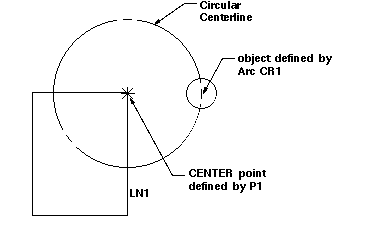

CLINE Statement to Create a Full Circular Centerline Using CENTER Minor Word
