Partial Circular Centerline Example

Creating a partial circular centerline without the CENTER minor word.

   $$
   $$ Declarations
   $$
   ENTITY/LN1,P1,P2,P3,CR1,CR2,CR3,CTRLN1
   $$
   $$ Geometry Definitions
   $$
   .
   .
   .
   $$
   $$ Centerline Definition
   $$
   CTRLN1 = CLINE/PCIRC,CR1,CR2,CR3
   $$
   $$ Program continues
   $$
   .
   .
   .

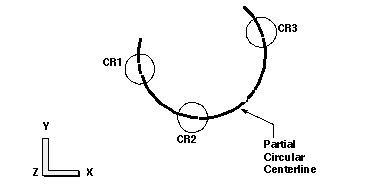

 CLINE Statement to Create a Partial Circular Centerline Without Using the CENTER Minor Word
