Parallel Example

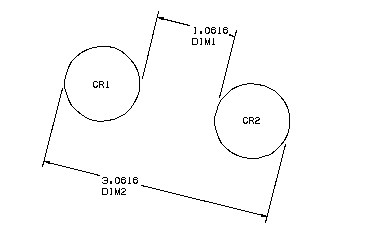

This example demonstrates the creation of two parallel dimensions tangent to two previously defined circles.

Positional modifiers are used to define from which side of the circle the dimension should be measured.

$$
$$ Declarations
$$
    ENTITY/CR1,CR2,DIM(2)
$$
$$ Geometry Definition
$$
    CR1=CIRCLE/-1,.25,.5
    CR2=CIRCLE/1,-.25,.5
    &TXARR=&ARRIN
    &ENSITE=&TOPL
$$
$$ Dimension Definition
$$
    DIM(1) =LDIM/PARLEL,.2,1,TANTO,XLARGE,CR1,$
    TANTO,XSMALL,CR2,APPEND,'DIM(1)'
    DIM(2) =LDIM/PARLEL,-1,-1,TANTO,YLARGE,CR1,$
    TANTO,YSMALL,CR2,APPEND,'DIM(2)'

Parallel Dimensions
