Hole Example

Creating several hole dimensions using two previously created circles.

$$
$$ Declarations
$$
    ENTITY/CR1,CR2,DIM1,DIM2
$$
$$ Geometry Definition
$$
    &DRSITE=&BELOW
    CR1=CIRCLE/-1,0,.5
    CR2=CIRCLE/1,0,.75
    &ENSITE=&BOTL
    &LEADER=&LEFT
$$
$$ Dimension Definition
$$
    DIM1=HDIM/0,1.1,CR1,APPEND,'DRILLED HOLE'
    &ENSITE=&TOPR
    &LEADER=&RIGHT
    DIM2=HDIM/0,-1.1,CR2,APPEND,'REAMED HOLE'

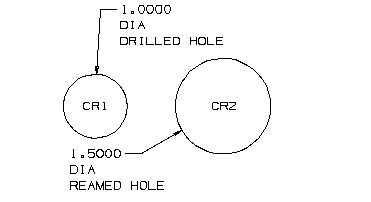

Hole Dimensions
