Diameter Example

Creating several diameter dimensions using a previously defined circle.

$$
$$ Declarations
$$
    ENTITY/CR1,DIM(3)
$$
$$ Geometry Definition
$$
    CR1=CIRCLE/0,0,1
$$
$$ Dimension Definition
$$
    DIM(1) =DDIM/0,.06,CR1,APPEND,'DIM(1)'
    &TXARR =&ARROUT
    &ENSITE=&TOPL
    DIM(2) =DDIM/.5,1.5,CR1,APPEND,'DIM(2)'
    &TXARR =&ARRIN
    DIM(3) =DDIM/.9,-1.00,CR1,APPEND,'DIM(3)'

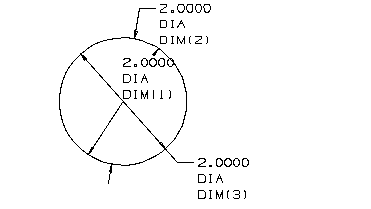

Diameter Dimensions
