Cylindrical Example

Creating cylindrical dimensions between two lines (DIM(1)) and an offset curve (MARG1) and a line (DIM(2)).

$$
$$ Declarations
$$
    ENTITY/LN1,LN2,MARG1,DIM(2),PT
    &FONT=&DASHED
    LN1 =LINE/-1,1,1,1
    PT=POINT/1,1
    &FONT=&SOLID
    LN2 =LINE/-1,-1,1,-1
    &TXARR=&ARRIN
    &ENSITE=&TOPL
    MARG1=OFFCRV/LN1,4,PT
    DIM(1) =CYLDIM/-2.2,.05,XSMALL,LN1,XSMALL,LN2
    &ENSITE=&TOPR
    DIM(2)=CYLDIM/2.2,.05,XLARGE,MARG1,XLARGE,LN1
    HALT

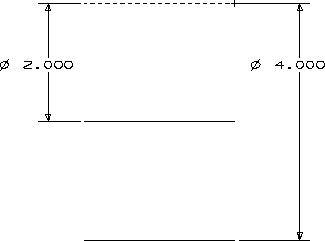

Cylindrical Dimensions between Lines and Offset Curve
