Angular Example

Creates several angular dimensions between two previously defined lines. The objects used in the angular dimension must be lines. The major and minor dimensions have been created.

$$
$$ Declarations
$$
    ENTITY/LN1,LN2,DIM(4)
$$
$$ Geometry Definition
$$
    LN1 =LINE/0,0,.5,.5
    LN2 =LINE/0,0,.5,-.5
$$
$$ Dimension Definition
$$
    DIM(1) =ADIM/.5,1.3,XLARGE,LN1,XLARGE,LN2,$
    APPEND,'DIM(1)'
    DIM(2) =ADIM/2.2,.21,XLARGE,LN1,XLARGE,LN2,$
    'MINOR',APPEND,'ANGLE','DIM(2)'
    DIM(3) =ADIM/MAJOR,-.05,.15,XLARGE,LN1,XLARGE,$
    LN2,APPEND,'DIM(3)'
    DIM(4) =ADIM/MAJOR,-1.8,.21,XLARGE,LN1,XLARGE,$
    LN2,'MAJOR',APPEND,'ANGLE','DIM(4)'

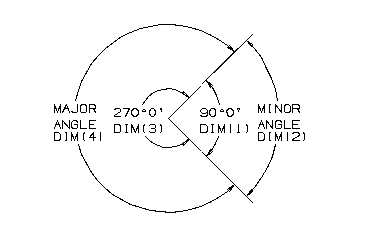

MAJOR and MINOR Angular Dimensions
